IMPACTOR 2000 SPECIFICATIONS

Total Unit Weight (approx.) 28,000 lbs. (12,700kg)
Drum Weight W/Axle (approx.) 19,000 lbs. (8618kg)
Towing Unit Required (Breaking) Tractor 175-hp flywheel (approx. 130 FKW)
Towing Unit Required (Compaction) Tractor 200-hp flywheel (approx. 150 FKW)
(4WD may be required depending on soil condition)
Max Recommended Operating Speed 8 mph (13km/h) compaction, 7 mph (11km/h) breaking.
Blows Per Second approx. 2 @ maximum recommended speed
Breaking Force approx. 30,000 psi (206,820 kPa)
Compaction Energy approx. 22,000 ft. lbs. (30,000 joules) per blow
Effective Compaction Width 7 ft (2.13 meters) includes wheel roll
Lift Thickness 1 to 4-feet (0.3 to 1.2-meters) depending on type of material and moisture content
Tires 12.00R20 (tubeless)
Drum Hydraulics* 2 cylinders for lifting of drum to transport mode, 2250 psi (15,500 kPa) (155 bar)
V-Grader Hydraulics 1 cylinder for operation of V-Grader, 2250 psi (15,500 kPa) (155 bar)
(float capability recommended)

Patent Numbers
US: 5,462,387 5,533,283 6,719,485 7,410,323 7,648,309 8,152,410
Canada: 2202146 2202147
EU: 0,791,107 2,142,706
Australia: 684,408 685,689
China: ZL 2008 8 0013645.1
Germany: 602008028563.4

* Used to raise the drum off the ground, for trailering or operating where drum contact is not desired

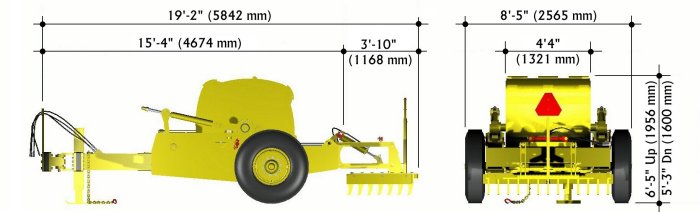

IMPACTOR 2000 DIMENSIONS




IMPACTOR 2000h SPECIFICATIONS

Total Unit Weight (approx.) 29,000 lbs. (12,700kg)
Drum Weight W/Axle (approx.) 20,000 lbs. (8618kg)
Towing Unit Required (Breaking) Tractor 200-hp flywheel (approx. 150 FKW)
Towing Unit Required (Compaction) Tractor 225-hp flywheel (approx. 170 FKW)
(4WD may be required depending on soil condition)
Max Recommended Operating Speed 8 mph (13km/h) compaction, 7 mph (11km/h) breaking.
Blows Per Second approx. 2 @ maximum recommended speed
Breaking Force approx. 31,750 psi (206,820 kPa)
Compaction Energy approx. 23,150 ft. lbs. (30,000 joules) per blow
Effective Compaction Width 7 ft (2.13 meters) includes wheel roll
Lift Thickness 1 to 4-feet (0.3 to 1.2-meters) depending on type of material and moisture content
Tires 12.00R20 (tubeless)
Drum Hydraulics* 2 cylinders for lifting of drum to transport mode, 2250 psi (15,500 kPa) (155 bar)
V-Grader Hydraulics 1 cylinder for operation of V-Grader, 2250 psi (15,500 kPa) (155 bar)
(float capability recommended)

Patent Numbers
US: 5,462,387 5,533,283 6,719,485 7,410,323 7,648,309 8,152,410
Canada: 2202146 2202147
EU: 0,791,107 2,142,706
Australia: 684,408 685,689
China: ZL 2008 8 0013645.1
Germany: 602008028563.4

* Used to raise the drum off the ground, for trailering or operating where drum contact is not desired

IMPACTOR 2000h DIMENSIONS




IMPACTOR 3000 SPECIFICATIONS

Total Unit Weight (approx.) 38,000 lbs. (17,240kg)
Drum Weight W/Axle (approx.) 29,000 lbs. (13,155kg)
Towing Unit Required (Breaking) Tractor 200-hp flywheel (approx. 150 FKW)
Towing Unit Required (Compaction) Tractor 200-hp flywheel (approx. 150 FKW)
(4WD may be required depending on soil condition)
Max Recommended Operating Speed 8 mph (13km/h) compaction, 7 mph (11km/h) breaking.
Blows Per Second approx. 2 @ maximum recommended speed
Breaking Force approx. 45,000 psi (314,370 kPa)
Compaction Energy approx. 33,000 ft. lbs. (44,750 joules) per blow
Effective Compaction Width 8.5 ft (2.59 meters) includes wheel roll
Lift Thickness 1 to 5-feet (0.3 to 1.5-meters) depending on type of material and moisture content
Tires Call
Drum Hydraulics* 2 cylinders for lifting of drum to transport mode, 2250 psi (15,500 kPa) (155 bar)
V-Grader Hydraulics 1 cylinder for operation of V-Grader, 2250 psi (15,500 kPa) (155 bar) (float capability recommended)

Patent Numbers
US: 5,462,387 5,533,283 6,719,485 7,410,323 7,648,309 8,152,410
Canada: 2202146 2202147
EU: 0,791,107 2,142,706
Australia: 684,408 685,689
China: ZL 2008 8 0013645.1
Germany: 602008028563.4

* Used to raise the drum off the ground, for trailering or operating where drum contact is not desired

IMPACTOR 3000 DIMENSIONS




IMPACTOR 3000h SPECIFICATIONS

Total Unit Weight (approx.) 39,000 lbs. (17,690kg)
Drum Weight W/Axle (approx.) 30,000 lbs. (13,610kg)
Towing Unit Required (Breaking) Tractor 225-hp flywheel (approx. 170 FKW)
Towing Unit Required (Compaction) Tractor 225-hp flywheel (approx. 170 FKW)
(4WD may be required depending on soil condition)
Max Recommended Operating Speed 8 mph (13km/h) compaction, 7 mph (11km/h) breaking.
Blows Per Second approx. 2 @ maximum recommended speed
Breaking Force approx. 46,550 psi (320,950 kPa)
Compaction Energy approx. 34,140 ft. lbs. (46,290 joules) per blow
Effective Compaction Width 8.5 ft (2.59 meters) includes wheel roll
Lift Thickness 1 to 5-feet (0.3 to 1.5-meters) depending on type of material and moisture content
Tires Call
Drum Hydraulics* 2 cylinders for lifting of drum to transport mode, 2250 psi (15,500 kPa) (155 bar)
V-Grader Hydraulics 1 cylinder for operation of V-Grader, 2250 psi (15,500 kPa) (155 bar) (float capability recommended)

Patent Numbers
US: 5,462,387 5,533,283 6,719,485 7,410,323 7,648,309 8,152,410
Canada: 2202146 2202147
EU: 0,791,107 2,142,706
Australia: 684,408 685,689
China: ZL 2008 8 0013645.1
Germany: 602008028563.4

* Used to raise the drum off the ground, for trailering or operating where drum contact is not desired

IMPACTOR 3000h DIMENSIONS
